Planishing Planishers Information

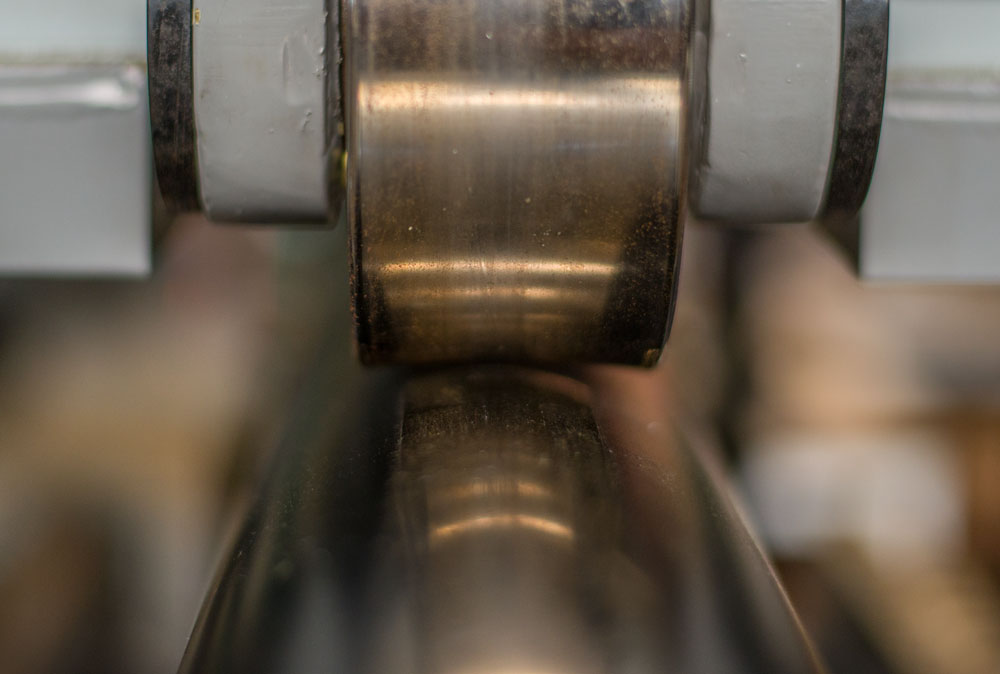

Planishing Roller

Planishing metal finish process used for shaping and flattening the weld bead smooth.

Planishers - Planishing Hammer Types


Metal planishing process improves the weld strength and cosmetic quality.


Planishing Tool Operations and How They Work



How planishing seam welds of metal will improve the weldment shaping appearance by flatting it smooth. Planishers metal work hardening adds weld strength during the metalworking fabrication process. Planisher tooling and machine types and how they work explained.

The common types of planishers used for planishing metal are hammer style either manual and automated, English Wheel planisher, roll planishers, pneumatic hammers and Bezeling planishing models and more! Planishers can be as simple tool like a ball peen hammer to all the way to safe fully automatic planishers for planishing simple to complex metalworking and fabricating applications.

Automated, Semi Automatic and Manual Planishers

Planishing hammers, either the manual or pneumatic types used in weld shops for thin gauge metal flattening and smoothing into shape. Newer hands-free safe planisher designs built to eliminate the pinch point dangers of the planishing process. The new automated planishers use a roller and custom mandrel tooling to smooth and flatten the weld bead while keeping the shape of the original part.

Planisher tooling and machine defined uses and how they function. Showing how the art of iron workers with planishing will shape and flatten the part sooth while improving the weld strength with compression. The planishing hammer is the most common equipment for blacksmiths and metal working welding fab shops.

Planisher pneumatic hammer machines and manual simple planishing tools. Including the English wheel planisher type to the modern technology of safer automated roll planishing machine technology that is revolutionizing the planishing process.

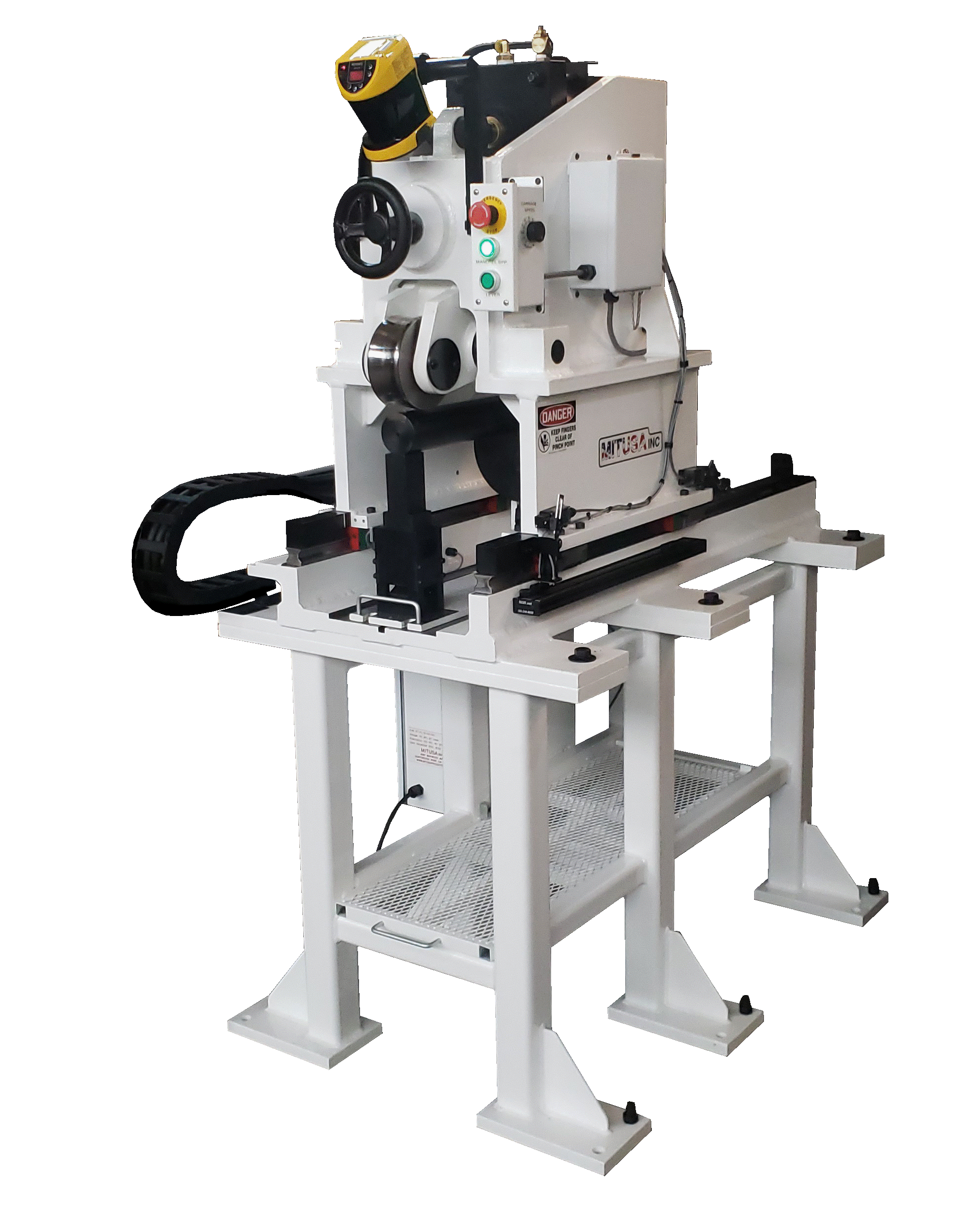

Roll Planishers

Pneumatic planishing hammer benefits

Pneumatic planishing hammers are simple, cost effective planishers for professional and amateur metal fabricators. Planishing tools and equipment have certain benefits of each planisher machine. Wheel or roll planishing on seam weld provide weld bead crown smoothing and flattening in a planishing process machine. Each planisher tool and machine style provides unique abilities for welding fab shop's metalworking finishing requirements.

Planishing Hammer Operation Examples

Planishing Process Tools

Planishing evolves the smoothing the surface of a metal by intense pressure by a Planishing hammer or by roll planishing, compressing the weld which increases the strength with cold hard working of the welded metal. The planishing tool can be as simple as a manual planisher hammer styles or powered planishing pneumatic hammers for hand held planishing applications.
The automated planishing machine types are hands free planishing process, eliminating dangers of injury to the operator's hands. Properly set planisher rolls and hammers are safe to use when properly following the weld planisher operation instructions.

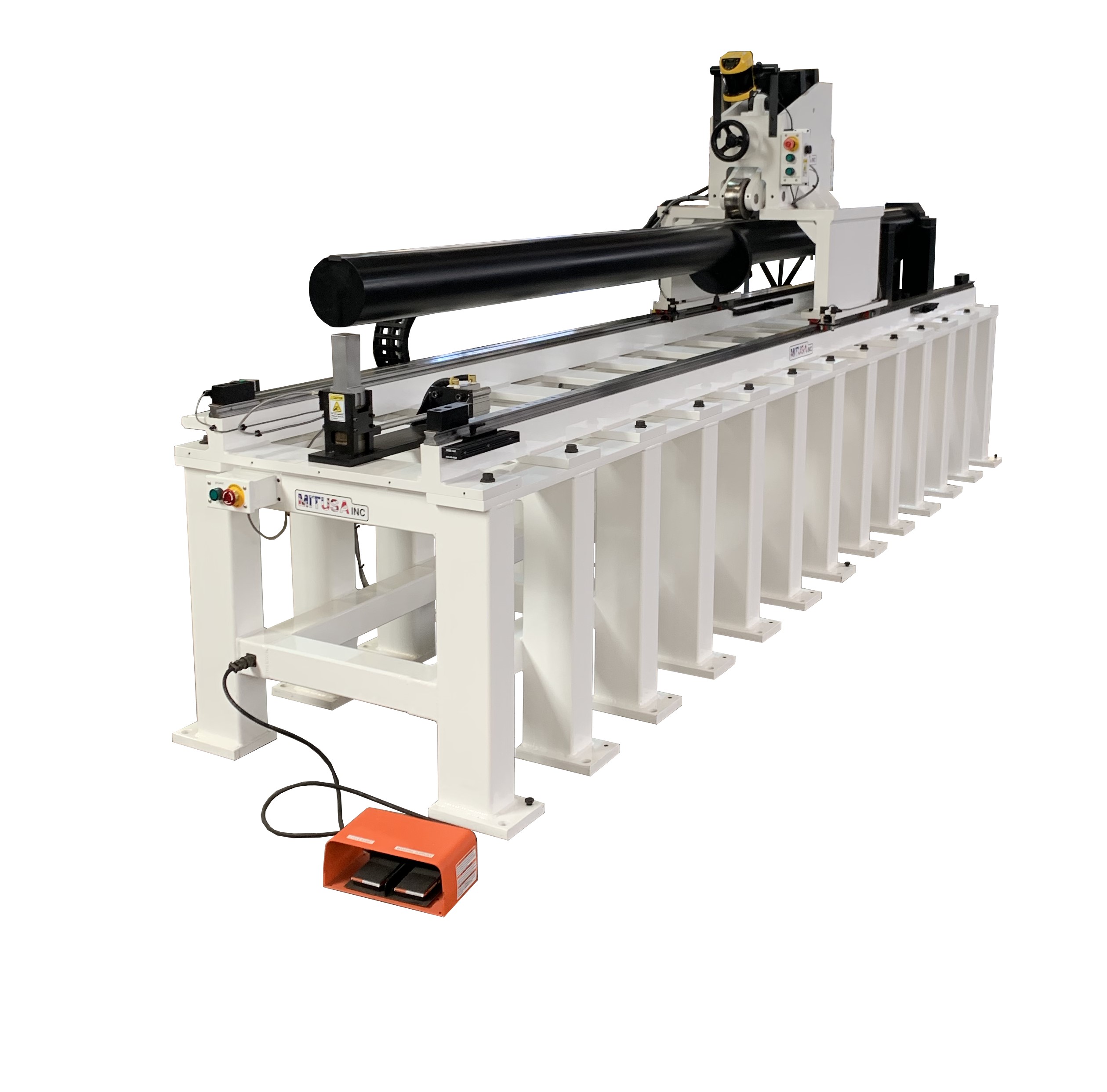

Planishing Machine

Longitudinal Planisher Planishing Benefits

Longitudinal planishers are used to smooth seam welds flat using forces of 20,000 lbs of more to flatten the weld bead seamlessly. Planishing increases the weld strength with the cold work hardening of the weld. Longitudinal planishers use intense pressure between the customized roller and the mandrel tooling to compress the crown by smashing the weld bead into the base metal.

The final end result of the roll planishing process is a smooth flattened weld that is cosmetically seamless in appearance. Longitudinal planisher models are safe to use if the operator follows the operation instructions on the correct roller and tool support gap setting for the thickness required.
